In advanced ceramics processing, what your grinding media leaves behind matters as much as what it removes. When you’re milling electronic ceramics, barium titanate, zircon, or specialty zirconia, even trace contamination from worn or reactive media can compromise product purity, disrupt downstream processing, or take an entire batch out of specification. Selecting the right zirconia grinding media is as much a quality assurance decision as a processing one.
With the advanced ceramics market projected to top $17 billion by 2030, the processing standards that protect product purity are only becoming more consequential. The engineers specifying media for these applications aren’t looking for the cheapest option. They’re looking for the most defensible one.
We’re Your Zirconia Experts: Our specialists are here to help with material selection, custom solutions, and technical guidance for your specific applications.
The Issues With the Wrong Media
Most grinding media failures in high-purity applications aren’t dramatic. They’re cumulative. Steel media introduces iron contamination; lower-density alumina media chips and fractures under repeated impact, seeding the milled powder with foreign particulate. Porous media absorb slurry components and unpredictably release them. By the time contamination shows up in finished product testing, it’s already cost you a batch and the time needed for process investigation to trace it back.
The engineers who specify media for advanced ceramics processing aren’t looking for margin. They’re looking for a medium that won’t introduce variables they can’t control.
Why Zirconia Is the Right Choice
MgO PSZ addresses the contamination problem at the material level. The formulation is non-porous, which eliminates slurry absorption and cross-contamination between runs. It’s non-conductive and non-magnetic, which are critical properties for electronic ceramic applications where electromagnetic interference from media residue is a real concern. Chemical inertness means the media won’t react with processing environments, even in aggressive slurries. And at a density of approximately 5.4–5.5 g/cm³, zirconia media delivers the mass-to-size ratio that drives efficient grinding without requiring oversized media charges.
Chip resistance is the other half of the contamination equation. Media that chips or fractures during milling becomes contaminated. Zircoa’s ceramic grinding media is engineered for hardness that resists breakdown over extended service life, keeping media weight loss low and milled powder clean.
Optimized Zirconia Grinding Media Media Geometry

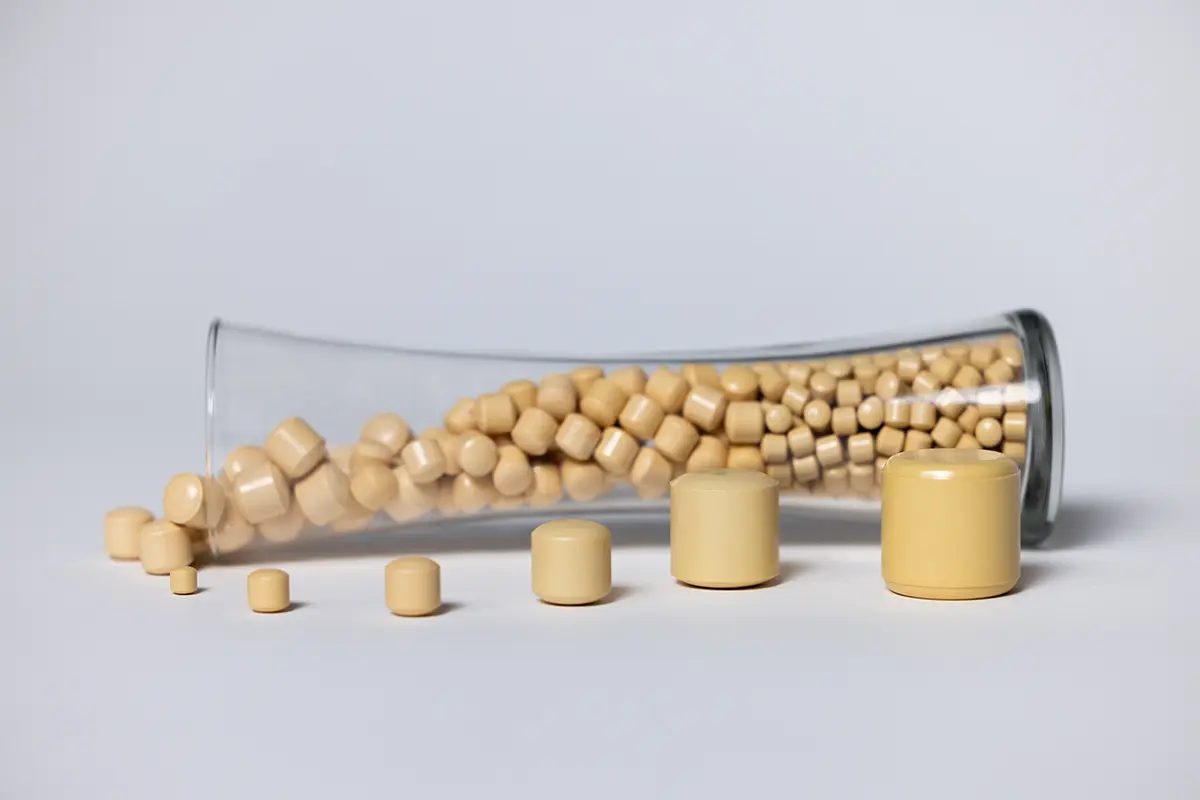

Zircoa manufactures ceramic grinding media as radius-end cylinders designed for vibratory, ball, and jar mills. Available in a range of sizes from 0.25″ to 1.25″, they handle the grinding of barium titanates, electronic ceramics, zircon, zirconia, and other specialty ceramics. This format provides the contact surface geometry suited to particle size reduction across a wide range of feed materials. This increased surface area leads to improved milling efficiency, such as faster grind times and consistent particle size.
All media is manufactured to order, with custom sizes available to match your specific mill configuration and target particle size.
For applications focused on dispersion rather than particle size reduction, Zircoa’s Zirbeads™ Dispersion Media is engineered specifically for high-shear mixing of paints, pigments, and high-viscosity industrial formulations. This is a related, but distinct, product optimized for different processing demands.
Four Decades of Application Engineering
Zircoa has been supplying ceramic grinding media to electronic ceramics and specialty materials processors for more than 40 years. That depth of experience informs not just the product, but the application support behind it. Zircoa’s engineering team works with customers on media sizing, mill parameter guidance, and processing best practices for specific materials. This is the kind of application partnership that matters when your grinding application has tight purity specs or unusual slurry chemistry.
Get the Right Media for Your Application
Media selection has a direct impact on product purity, process consistency, and batch yield. Zircoa’s application engineers are ready to help you identify the right grinding media configuration for your specific material and mill system. Contact the Zircoa team to discuss your grinding requirements.
